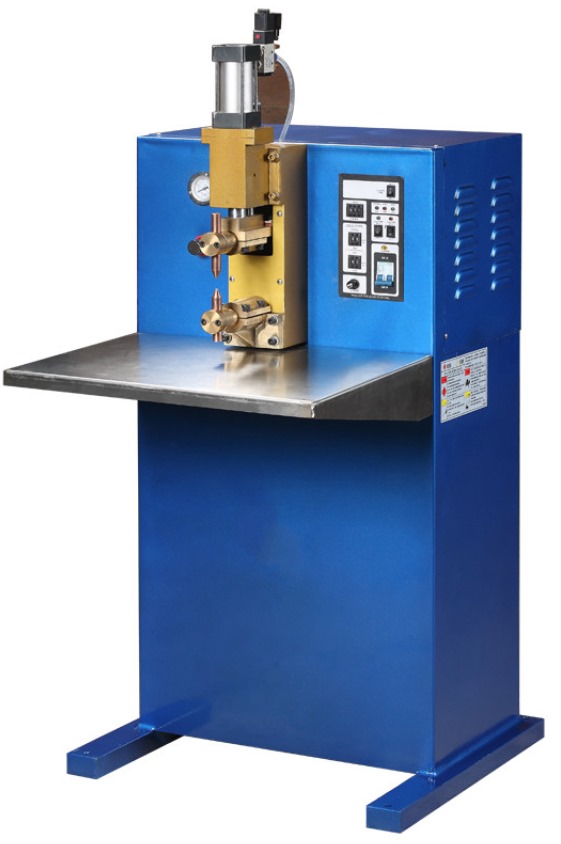

TDR系列电容储能点凸焊机
TDR Series Capacitive Discharge Spot＆Projection Welding Machine
特点及用途:
1.电容放电焊接，时间短，焊点变形小，外表美观
2.采用单片机集成控制，功能齐全，性能可靠，且充电电压具有反馈控制，电压稳定性好，焊接质量高
3.输出与电网隔离，焊接规范不受网压波动影响，功率因数高,节能省电
4.配合不同电极，可用于焊接钢、铝、银、不锈钢、镍等各类金属，线材、板材的精密焊接
Features and application:
1. Capacitor discharge welding, the time is short, the solder joint deformation is small, the appearance is beautiful
2. With single chip microcomputer integrated control, complete functions, reliable performance, and the charging voltage with feedback control, voltage stability, high welding quality
3. Output and grid isolation, Welding specification is not affected by power grid voltage fluctuation, Power factor is high, energy saving
4. With different electrodes, can be used for steel, aluminum, silver, stainless steel, nickel and other types of metal, wire, sheet metal precision welding
主要技术参数 Main Technical Parameters：
参数 Parameter 型号 Model No. | 输入电压Input Voltage | 焊接功率Welding Power | 电容量Capacitance | 储能量Energy Storage | 焊接臂长 Welding Arm Length | 电极行程Electrode Stroke | 电极压力 Electrode Pressure | 总重量 Total Weight |
TDR-2KVA | 220V | 2KVA | 4500μF | 500J | 120MM | 50MM | 1000N | 280KG |
TDR-3KVA | 220V | 3KVA | 13500μF | 1500J | 380MM | 60MM | 2500N | 460KG |
TDR-5KVA | 380V | 5 KVA | 27000μF | 3000J | 380MM | 60MM | 3900N | 700KG |
TDR-7KVA | 380V | 7 KVA | 47000μF | 4500J | 380MM | 60MM | 3900N | 850KG |
TDR-10KVA | 380V | 10 KVA | 79000μF | 8000J | 380MM | 60MM | 6280N | 1000KG |
TDR-12KVA | 380V | 12 KVA | 98000μF | 10000J | 380MM | 60MM | 6280N | 1200KG |
TDR-16KVA | 380V | 16KVA | 120000μF | 12000J | 380MM | 60MM | 12000N | 1500KG |
TDR-20KVA | 380V | 20KVA | 150000μF | 15000J | 380MM | 60MM | 15000N | 1800KG |

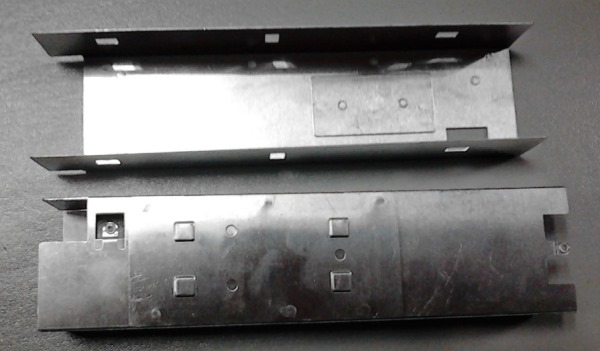

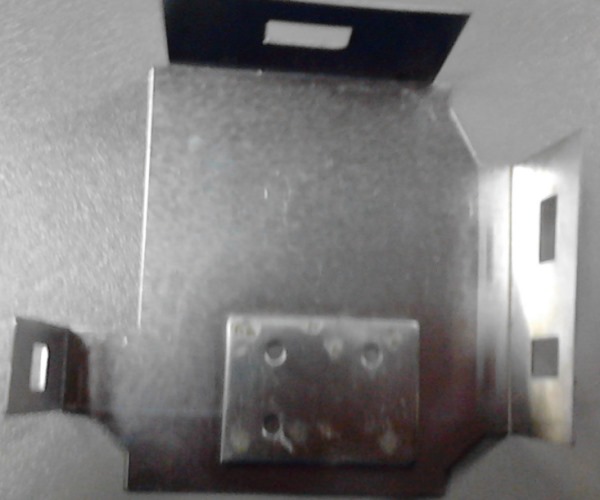

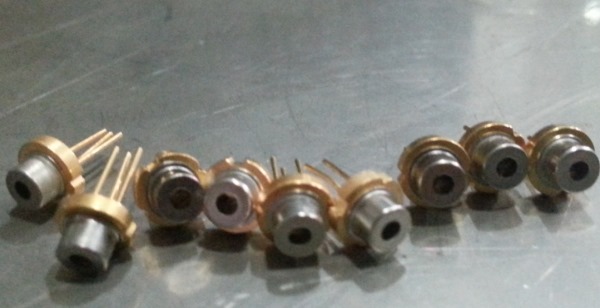

焊接实样Welding Samples
