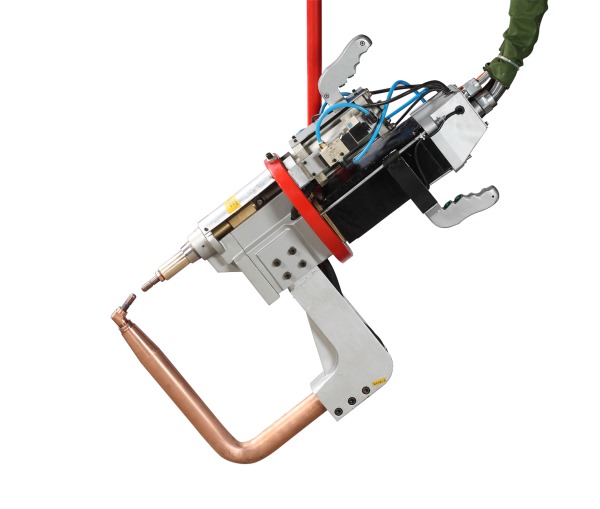

TDN2系列一体式悬挂点焊机

TDN2系列一体化悬挂式点焊机

TDN2 Series integration Suspension type spot welding Machine

性能特点：

1. 变压器与焊钳连为一体，优质铸造铝合金（ZL104）机身，具有重量轻，体积小、出力大、高效节能

2. 电极臂全部采用优质铬锆铜（CuCr1Zr），并加装了铝合金护套，保证了焊接性能的稳定性、焊机使用的寿命及电极臂的强度。同一种机型的电极臂可任意互换，做到一机多用。

3. 焊接变压器采用了U型铁芯，与其他公司的E型铁芯相比，降低了电磁涡流产生的耗损，保证了焊接质量。

4. 气动加压系统为我公司自行设计的大口径铝合金气缸筒，焊机出力更大（电极压力高），从而保证了焊点强度,特别是焊接中厚板时，效果更好。

5. 悬挂装置配合弹簧平衡器及相适应的轻便型滑轨滑车，可在X、Y、Z三维空间作上、下、左、右、前、后任意方向的移动和转动，操作极为轻便灵活，实现了全位置全方向的焊接操作。

Main Features

1. The transformer and the welding clamp together, casting quality Aluminum Alloy (ZL104) body, has the advantages of light weight, small volume, large output, high efficiency and energy saving

2. Are all made of high quality chromium zirconium copper electrode arm (CuCr1Zr), and add the aluminum sheath, To ensure the stability and service life of the welder and welding performance of electrode arm strength.The same type of electrode arm can be arbitrary swap, achieve multi-usage

3. Welding transformer used the u-shaped iron core, compared with other company's E core, reduces the electromagnetic eddy current loss, to ensure the welding quality

4. Pneumatic pressure system for my company to design the large diameter of aluminium alloy cylinder tube, welding machine output greater pressure high (electrode), so as to ensure the solder joint strength, especially medium thick plate welding, the effect is better

5. Suspension with spring balancer and portable corresponds to the slide block, can be in the X, Y, Z three dimensional space for up, down, left, right, before and after any direction of movement and rotation, operation is extremely lightweight flexible, implements the omnidirectional all position welding operation.

主要技术参数 Main Technical Parameters
